Special Tape
NON UV TAPE (DN280 Series)
- In the regular range of adhesive strength, because there is little changes in slight, there is no problem with Chip Flying and in Die Pick-up, works are done excellent.
- Special features
- For the uses of Dicing process in Semiconductor field and Chip mounting and dispatching in LED field.
- It is possible to regulate the adhesive strength by grade for the purpose of prevention foreign material and the fixation
- DN-280AS is Antistatic finished product Which minimize the static electricity and foreign material

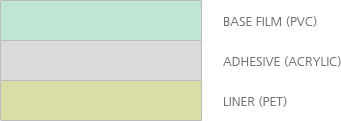

- Composition
- Standard specification
-
Standard
| Model |
Thickness(㎛) |
Adhesion(gf/25mm) |
| Base Film |
Adhesive |
| DN-280 |
PVC
75±3 |
7±2 |
100±20 |
| DN-280L |
7±2 |
80±20 |
| DN-280H |
7±2 |
120±20 |
DN-280AS
(Antistatic) |
5±2 |
100±20 |
- EXAMPLE
- ※ Use process : Inspection, Sorting, Release, Die Bonding
